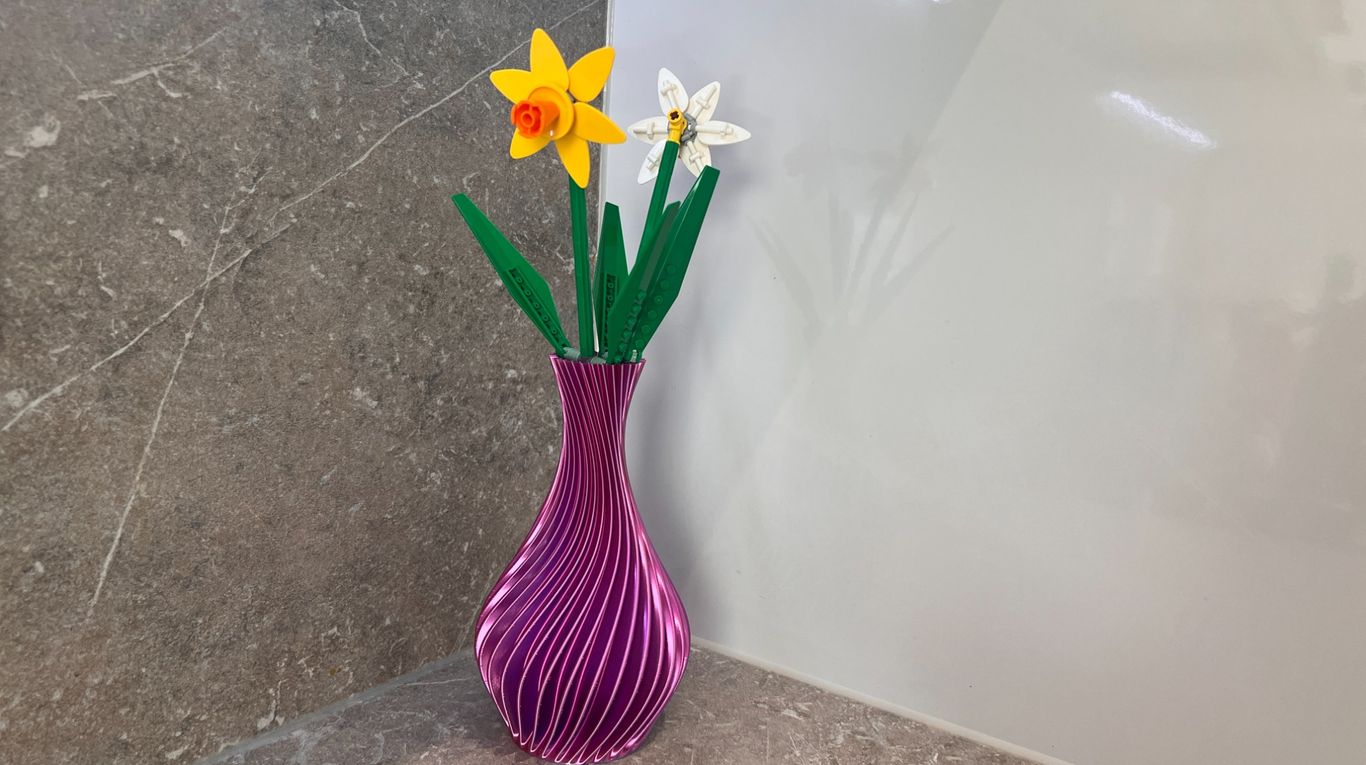

The Helix of Elegance
Crafting a Spiral Vase in Fusion 360
Greetings, fellow engineers and design enthusiasts! Today, we're going to create a spiral vase in Fusion 360 that's so stunning, even the flowers will be blushing. So, buckle up, and let's get our creative juices flowing!
Step 1: Setting the Stage
First things first, open Fusion 360 and create a new design. Remember, every masterpiece starts with a blank canvas (or in this case, a blank workspace).
Step 2: The Circle of Life
Next, we're going to create the base of our vase. Click on the 'Create Sketch' button and select the XY plane. Then, select the 'Circle' tool and draw a circle in the center of the grid. This will be the footprint of our vase, so choose a size that's vase-worthy.
Step 3: Rise to the Occasion
Once you have your basic sketch in place, start refining your design. Add details to the clamp to make it more functional and visually appealing. Consider the materials you'll use to print the clamp and adjust your design as needed.
Step 4: The Twist and Shout
Here comes the fun part - adding the spiral. Click on the 'Create Coil' button and select the top face of the cylinder. Draw a circle that's slightly smaller than the diameter of the cylinder, and set the 'Type' to 'Spiral'. Adjust the 'Revolutions' and 'Height' to create a spiral that wraps around the cylinder. This will be the helix of our vase, so make it as twisty as your heart desires.
Step 5: The Cutting Edge
Now, we're going to cut the spiral into the cylinder to create our vase. Click on the 'Combine' button, select the cylinder and the spiral, and set the 'Operation' to 'Cut'. Voila, you've just created a spiral vase!
Step 6: The Finishing Touches
Finally, it's time to add some finishing touches. Use the 'Fillet' tool to round off the edges, and the 'Shell' tool to hollow out the vase. Then, select the 'Render' workspace and apply a material and lighting to make your vase look as real as possible.
And there you have it - a spiral vase that's as elegant as a ballet dancer and as unique as a snowflake. Remember, in the world of 3D design, the only limit is your imagination. So go forth, design, and conquer!
Other Articles You May Like
Want to learn more about how we bring dreams to life? Check out our newest article.
In the world of 3D printing, one application stands out for its unique blend of art and technology: lithophanes. But what exactly are lithophanes, and how are they made? Let's delve into the fascinating world of 3D printed lithophanes.

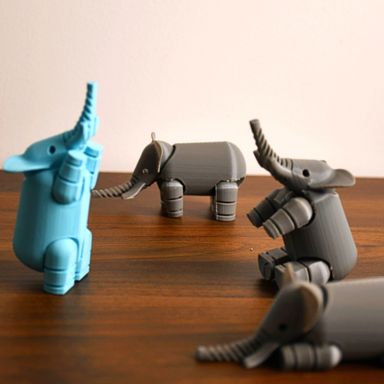

Welcome to the enchanting world of 3D printing, where creativity knows no bounds! Today, we're excited to introduce you to an adorable companion that will capture your heart – the Articulated 3D Printed Elephant from DreamIn3D's whimsical collection. Get ready to discover the wonders of 3D printing and embark on a journey of imagination and delight!

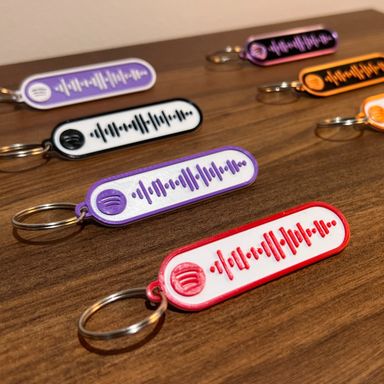

In the digital age, music has become more accessible than ever. But at DreamIn3D, we believe that music is not just something to be heard, but also to be seen and touched. That's why we've created our unique 3D printed Spotify codes, a stylish and modern way to showcase your favourite songs and playlists.

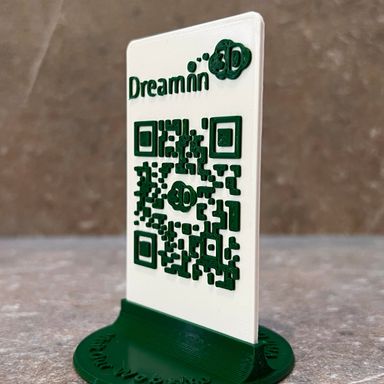

In recent years, 3D printing has witnessed a meteoric rise, transforming various industries and pushing the boundaries of innovation. One exciting application of this technology is the creation of 3D printed QR codes. As 3D printing enthusiasts and experts, DreamIn3D has been at the forefront of this breakthrough, exploring the potential and possibilities of merging QR codes and three-dimensional printing. In this blog post, we will delve into the fascinating world of 3D printed QR codes, addressing some key questions that will pique your curiosity.
